744025004
Manufacturer:
Wurth Electronics
Mfr.Part #:
744025004
Datasheet:
Description:

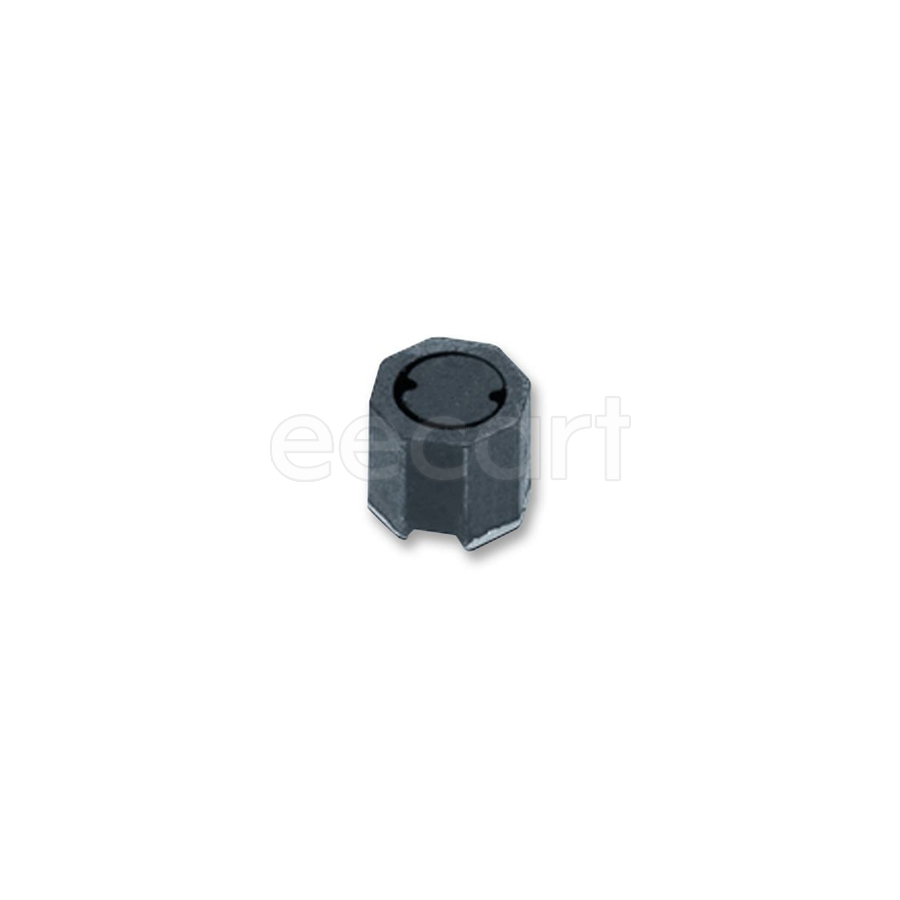

Fixed Inductors 2.80mmL×2.80mmW×2.80mmH SMD/SMT 4.7 µH 20 % 1.35 A 120 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 2.8 mm |
| Width | 2.794 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 2.8 mm |
| Packaging | Reel |
| Depth | 2.8 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 84 MHz |
| Current Rating | 1.35 A |
| DC Resistance (DCR) | 120 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.35 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.35 A |
| Series Resistance | 100 mΩ |
| Saturation Current | 1.7 A |
| Type | Wirewound |
Stock: 14693
Distributors
pcbx
pcbxUnit Price$1.02591
Ext.Price$1.02591
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.02591 | $1.02591 |
| 10 | $0.98916 | $9.89160 |
| 25 | $0.94723 | $23.68075 |
| 50 | $0.90708 | $45.35400 |
| 100 | $0.49073 | $49.07300 |
| 300 | $0.45148 | $135.44400 |
| 500 | $0.41537 | $207.68500 |
| 1000 | $0.38216 | $382.16000 |
